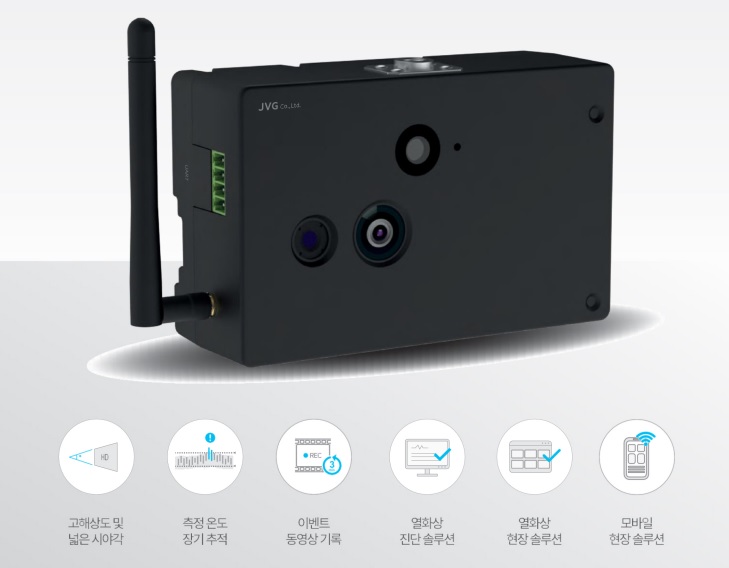

설치형 열화상카메라 JTIC-X40

  • 높은 해상도와 광각을 이용하여 보다 넓은 진단 범위 제공
  • 정밀한 온도 분해능을 통한 대상체에 대한 최적의 진단 결과를 제공
  • 열화상 진단 솔루션 TMS(Termal Monitoring System)을 통한 효율적 진단 기능 제고
  • 열화상 현장 솔루션 TSV(Termal Simple Viewer)통해 진단 상황을 상황실이나 감시실이 아닌, 설치된 현장에서 즉시 판단

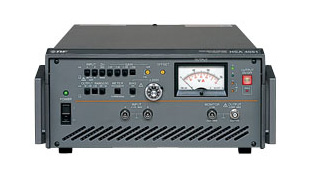

High Speed Bipolar Amplifier-HSA4000 Series

  • High speed, broad band and high slew rate
  • Frequency range is DC to max.10MHz. Slew rate is max.5000V/µ s.
  • A fast rise time pulse signal and a complicated waveform signal can be amplified with a high fidelity.
  • High voltage output - Max. output voltage is 300Vp-p. Possible to drive piezo actuators and display devices by a big margin.
  • 4-quadrant operation ( bipolar output )
  • Available for output plus/minus of voltage and current freely.
  • Changing of plus/minus polarity continuously without switching.
  • Excellent step response
  • Possible to get a clean waveform of few overshoot and ringing.
  • Two inputs are provided - Input is A and B of dual inputs. One touch operation for addition and input change.
  • DC bias - Equipped with DC bias function enabling to add DC to the output.
  • Low output impedance - Enable to get excellent response in capacitive and inductive load.
  • Function of output range shift - Equipped with the range shift function which is able to change output range.
  • Others - Equipped with DC offset adjustment function, protection circuit, Monitor meter & monitor output, output ON/OFF switch and others.

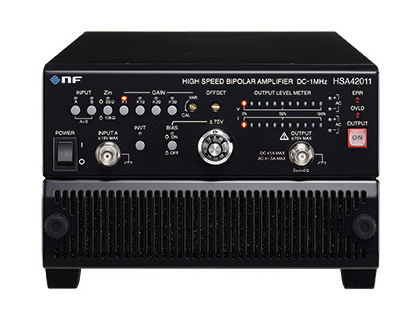

High Speed Bipolar Amplifier-HSA42000 Series

  • Frequency range : DC to 1 MHz
  • Output Voltage : 150 Vp-p
  • Output Current : HSA42011(3 Ap-p) / HSA42012(6 Ap-p) / HSA42014(12 Ap-p)
  • Slew rate : 475 V/μs
  • Four-quadrant operation
  • Low output impedance
  • Gain setting, Output polarity switching, Output DC offset voltage adjustment, Output DC bias voltage setting, Protection function



Three-phase Voltage Protective Relay Tester-RX4718

  • Outputs 100VA three-phase voltage
  • Equipped with counter function, output selector, auto sweep function, memory function, DC output for testing, master/slave function, etc.
  • Auto setting of 1LG, 2LS, three-phase batch, three-phase balanced and phase switching functions
  • Output frequencies of 50Hz, 60Hz and 10Hz to 200Hz, using external synchronization orß line synchronization (selectable)
  • Equipped with GPIB/RS-232C interfaces
  • Weight: 19.5kg



Single-phase Voltage, Single-phase Current Prote..

  • Outputs 100VA single-phase voltage and 180VA single-phase current
  • Equipped with counter function, output selector, auto sweep function, memory function, DC output for testing, master/slave function, etc.
  • Output frequencies of 50Hz, 60Hz, and 10Hz to 200Hz, using external synchronization or line synchronization (selectable)
  • Equipped with GPIB/RS-232C interfaces
  • Weight: 19.5kg



Low-loss Simulated Electronic Load

  • Two operation modes: resistance mode and constant current mode
  • Current waveforms can be freely set to simulate non-linear load in harmonic current, etc.
  • Current phase setting is enabled.
  • Operates using AC or DC power
  • Reduces energy consumption via power recovery
  • Three-phase testing enabled in master and slave operation
  • Can be connected to boosters (up to four 2kVA-boosters)
  • Support automated testing via an external interface
  • Maximum input voltage : AC: 150Vrms / 300Vrms, DC: ±212V / ±424V
  • Max. input voltage : AC: 20Arms / 10Arms (40Hz to 100Hz), DC: ±9.0A / ±4.5A
  • Power-2kVA



AC Power Source-ES Series

  • Single-phase 2 kVA to 20 kVA, Three-phase 6 kVA to 60 kVA. Single-/Three-phase switchable*.
  • AC output voltage: 0 to 150 V/0 to 300 V, Frequency: 5 Hz to 1100 Hz,
  • DC output voltage: 0 to + 203 V/0 to + 406 V
  • Component style allows expansion after being introduced.
  • Cabinet style is compact and requires small installation space.
  • Voltage dips, voltage variations, simultaneous sweeping of frequency and voltage.
  • Equipped with measurement function, protective circuit, remote sensing, and AGC function. External input available and peak current of 3.5 times of maximum rms value can be supplied.
  • Software (Immunity Test Software ES0406D*) that performs low frequency immunity test of IEC standard is available.
  • Performs power source harmonic measurement and various simulations. Furthermore, it can be used as CVCF for anechoic chamber or production line.

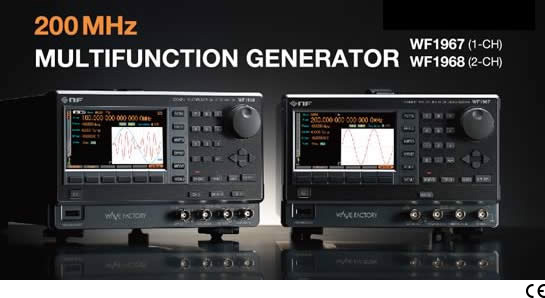

Multifunction Generator-WF1967,WF1968

  • Maximum frequency: 200 MHz (sine wave), 70 MHz (square wave, pulse)
  • Maximum output voltage: 20 Vp-p/open (10 Vp-p/50 Ω, 110 MHz or less)
  • Waveform amplitude resolution: Approx. 16 bit
  • Various types of output waveforms : Sine, square, pulse, ramp, noise, DC, parameter-variable and arbitrary
  • Square wave and pulse with high resolution, variable duty of 0.0001%
  • High-speed, large-capacity arbitrary waveform: 420 MS/s, 4 Mi* words
  • Various oscillation modes : Continuous, burst/trigger/gate, internal/external modulation, sweep, burst and modulation, sweep and modulation
  • Sequence function
  • “Synclator” function:Automatically synchronizes a signal input from an external source to the main output signal.
  • Interfaces: USB, GPIB, LAN (optional)
  • Control software : Arbitrary waveform/sequence editing, remote control and logging



LCR Meter-ZM2376

  • An LCR meter measures impedance (inductance, capacitance and resistance) at spot frequencies.
  • It is used for testing components and materials in R&D applications and in component manufacturing.
  • Measurement frequency 1mHz to 5.5MHz
  • Basic accuracy 0.08%
  • Measurement speed Max. 2ms
  • Equipped with contact check and Low capacitance check functions and a handler interface

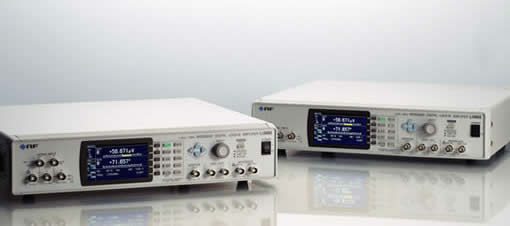

Lock-in Amplifier/Preamplifier LI5660

  • Frequency range : 0.5 Hz to 11 MHz
  • Voltage measurement : 10 nV to 10 V*F.S.
  • Current measurement 10 fA to 1 μA F.S.
  • Minimum time constant : 1 μs
  • Dynamic reserve 100 dB or more
  • Analog output update rate : up to approximately 1.5 M samples/s
  • Dual Frequency Simultaneous measurement - Two sets of dual phase sensitive detectors enable two frequency components included in a single input signal to be measured simultaneously.
  • Fractional Harmonic measurement - Mesurements at submultiple frequencies of the fundamental wave (1 to 63)
  • External 10 MHz synchronous input - Can be synchronized with the reference frequency of other devices by using an external reference frequency.
  • Measurement parameters: X, Y, R, θ, DC, Noise
  • Interfaces: USB, GPIB, LAN
  • Thin 2U size (88 mm)

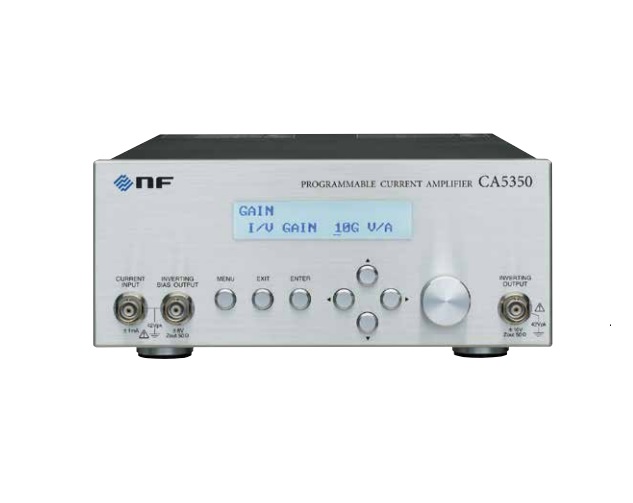

프로그래머블 전류 증폭기 CA5350

  • 고이득 : 10⁴ V/A ~ 10¹⁰ V/A(7 레인지, X 10 스텝), 최대 10¹¹ V/A
  • 광 대역 : DC ~500kHz (10⁶ V/A), DC ~ 70kHz(10⁹ V/A)
  • 고속 응답 : 0.7uS(10⁶ V/A)
  • 저잡음 : 2.5fA/√Hz(10¹⁰ V/A, 55Hz에서)
  • 전류 억제 기능에 의해 입력의 암 전류를 캔슬 가능
  • 인터페이스 : GPIB, USB
  • 이득 가변 타입의 전류 입력-전압 출력 증폭기입니다. PD, APD, PMT를 이용한 미약 광 측정을 비롯해 양자 일렉트로닉스. 반도체,MEMS 분야등 각종 미세 전류 측정
  • 싱크로트론이나 축적 링의 빔 위치 모니터
  • 유기 박막 디바이스의 I-V 특성 측정
  • FET, IGBT 등 게이트 누설 전류 측정
  • STM(주사형 터널 현미경)의 터널 전류 측정
  • 전류 계측 AFM(원자간력 현미경)도전성 탐침 전류의 검출

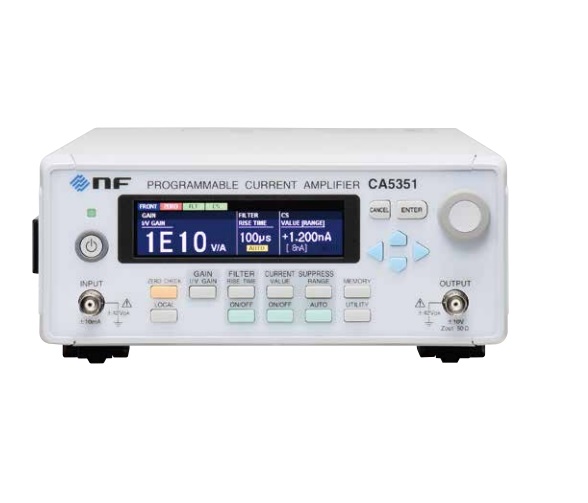

프로그래머블 전류 증폭기 CA5351

  • 고이득 : 10³ V/A ~ 10¹⁰ V/A(8 레인지, X 10 스텝)
  • 광 대역 : DC ~500kHz (10⁶ V/A), DC ~ 70kHz(10⁹ V/A)
  • 고속 응답 : 0.7uS(10⁶ V/A)
  • 저잡음 : 2.5fA/√Hz(10¹⁰ V/A, 55Hz에서)
  • 전류 억제 : ±8 nA ~ ±8mA(7레인지)
  • 인터페이스 : LAN, GPIB, USB
  • 이득 가변 타입의 전류 입력-전압 출력 증폭기입니다. 타 제품에 없는 고이득과 광대역을 양입하고 고속 응답에도 대응합니다.
  • 고성능에 조작성도 뛰어난 방사광 시설을 비롯해 첨단 연구에서 산업분야까지, 다양한 미소 전류 측정에 대응합니다.
  • 방사광 시설 : 이온 챔버에서 발생하는 미소 전류 검출
  • 바이오 분야 : 콜터 카운터법에 의한 전해액 중 입자 측정
  • 자동차 분야 : LED 헤드라이트 등 PWM 점등 방식의 램프 배광 측정에 수광기(포토셀)의 미약한 광전류를 검출
  • STM(주사형 터널 현미경)의 터널 전류 검출
  • 전류 계측 AFM(원자간력 현미경)도전성 탐침 전류의 검출

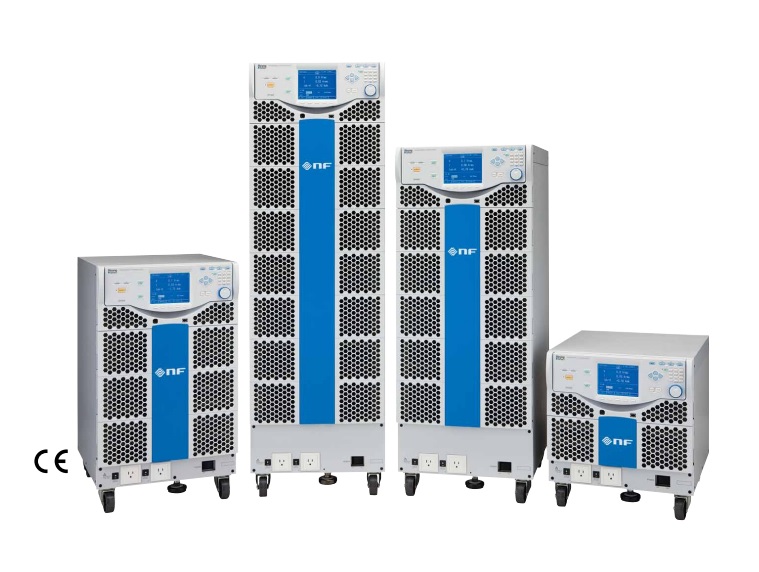

프로그래머블 교류 전원-DP시리즈

  • 최대 출력 전압 320V
  • AC,DC 출력 모드
  • 충실한 계측 기능-전압,전류,전력,부하역률, 크레스트 팩터, 동기 주파수, 고조파 전류
  • 피크치 및 실효치로 전류를 제한할수 있는 전류리미터를 구비
  • 다양한 요구에 대응하는 전원 파워 출력 시퀸스 기능, 전원 변동 시험 기능, 클립 정현파, 임의 파
  • 파워 유닛 통전 설정
  • 자동화, 시스템 업을 지원하는 각종 인터페이스를 구비
  • 메모리 기능, 외부 신호 입력, USB 메모리 기능
  • 전원 입력 (주문 시 지정) 단상, 삼상 3선, 삼상 4선

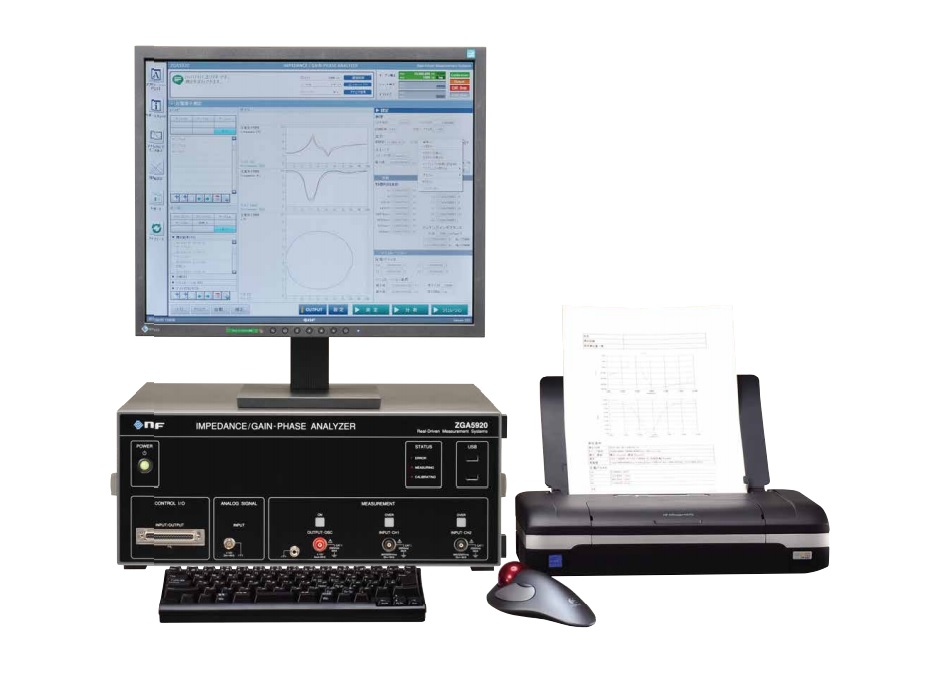

임피던스/게인페이즈 종합 해석장치-ZGA5920

  • 초 저주파 영역부터 측정가능 측정 주파수 범위 0.1mHZ ~ 15MHz
  • 파워 디바이스나 고전압 회로 측정에 대응 최대 입력 전압 250Vrms, 다이내믹레인지 140dB
  • 풍부한 측정 스웹 파라미터와 주파수축 고정도 스윕 파라미터 : 주파수, AC 진폭, DC 바이어스, 시간
  • 전입출력 아이솔레이션 아이솔레이션 전압 250Vrms
  • 측정 데이터의 신뢰성을 높여 주는 각종 기능을 장비 오픈,쇼트 보정기능, 적분기능, 이퀼라이저 기능 등
  • 각종 파워 앰프를 조합하여 측정물의 동작 범위에 마춘 측정이 가능

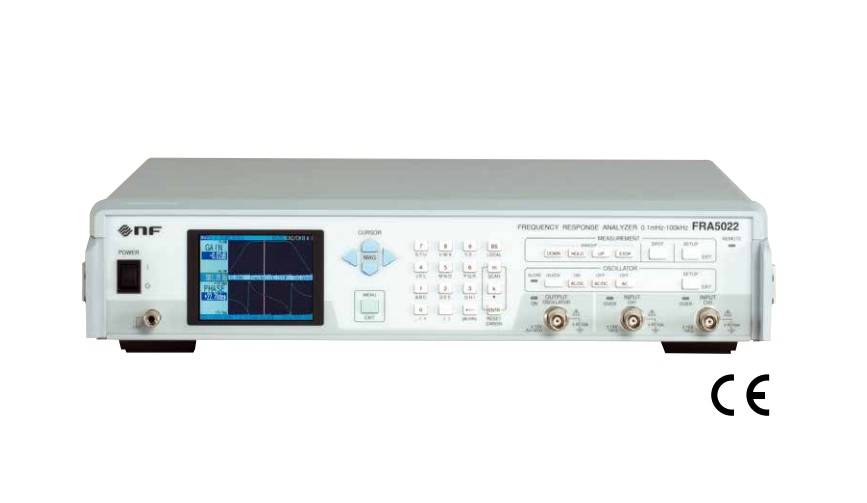

주파수 특성 분석기 - FRA5022

  • 측정 주파수 범위 : 0.1mHZ ~ 100kHz
  • 진폭 정도 ± 0.05dB, 위상 정도 ± 0.3'
  • 다이내믹레인지 120dB 이상
  • 입출력 아이솔레이션
  • 초 저주파의 측정 시간을 단축
  • 간단한 설정 전환
  • 소형 (높이 88mm,2U
  • 데이터 표시 소프트웨어 부속

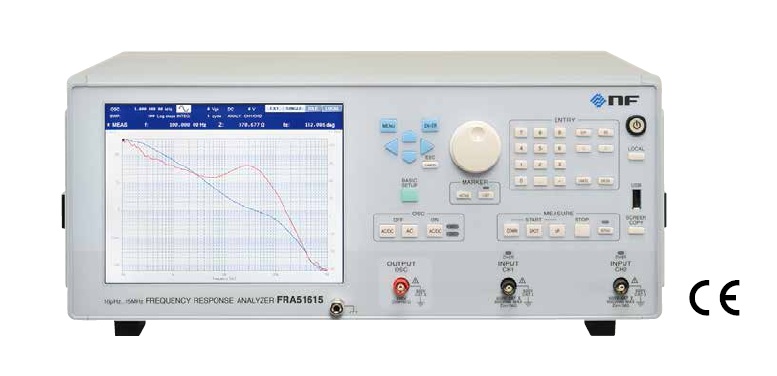

주파수 특성 분석기-FRA51615

  • 측정 주파수 범위 : 10uHZ ~ 15MHz
  • 측정 속도 : 0.5ms/point
  • 기본확도 : 이득 ±0.01dB,위상 ±0.06'
  • 아이솔레이션/최대입력전압 : 600V CAT II/300V CAT III
  • 최대 측정 전압 : 600V rms
  • 시퀸스 측정, 마커 서치 기능, 군 지연 측정, 주파수 변화시 위상 제어, 로드 보정, 포트 연장기능, 전위 경사 제거기능

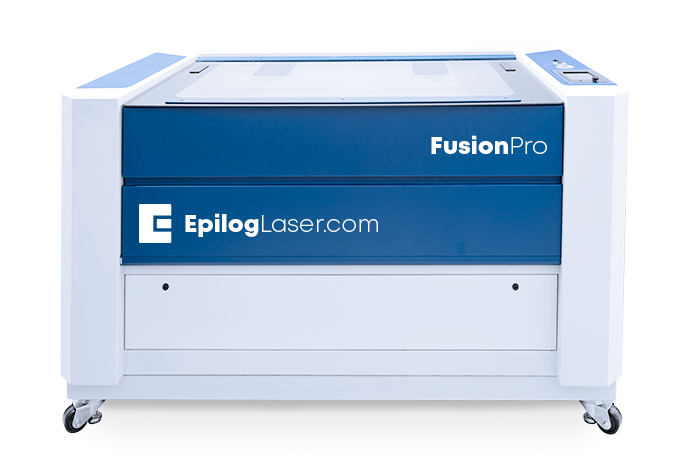

Elpilog Fusion Pro 48 Laser Machines

  • Highest-Speed Engraving Over Largest Work Area
  • IRIS™ Camera Positioning
  • Touch Screen at the Laser
  • Engineered and Manufactured in the USA
  • Network Your Laser Across Your Business
  • SAFEGUARD™ Features
  • Air Assist and Compressor
  • Table Choices
  • Radiance™ Beam Enhancing Optics
  • CO2 Waveguide Laser Tubes by Epilog
  • 1 GB Memory in the Machine
  • Long-Life Steel Bearing

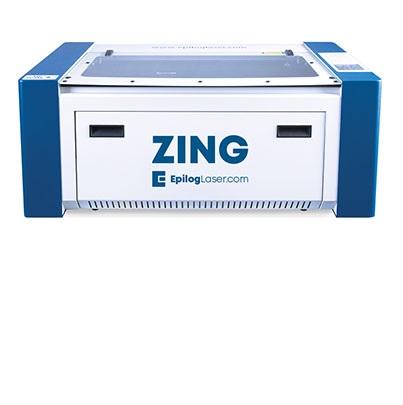

Elpilog Zing 24 Laser

  • The Zing's high-speed stepper motors provide high-resolution engraving and cutting quality. With the Zing you'll see the high-quality engraving for which Epilog is famous.
  • All Epilog Laser systems are proudly designed, engineered, and manufactured in our headquarters in Golden, CO, USA.
  • Lenses rated to 500 watts can last the entire life of the system, saving you time and money.
  • Remove heat and combustible gases from the surface of the material as you cut.
  • Move and set your home position to any point on the engraving table - you're not limited to the upper left corner.
  • Easily create rubber stamps with adjustable shoulders, widening and fences.
  • The Zing's Red Dot Pointer provides a visible laser beam for setting up projects and to see exactly where the laser will fire. Project layout has never been easier!
  • User-friendly print driver allows you to control all of the laser's features from one interface.
  • The 3D mode adjusts the power applied to the material based on the grayscale in the artwork, creating stunning 3D designs.
  • All Epilog Zing laser systems come standard with a high-speed, 10 Base T-Ethernet connection as well as USB.
  • Easily map different speed and power settings to different colors in your file in both engraving and cutting modes.

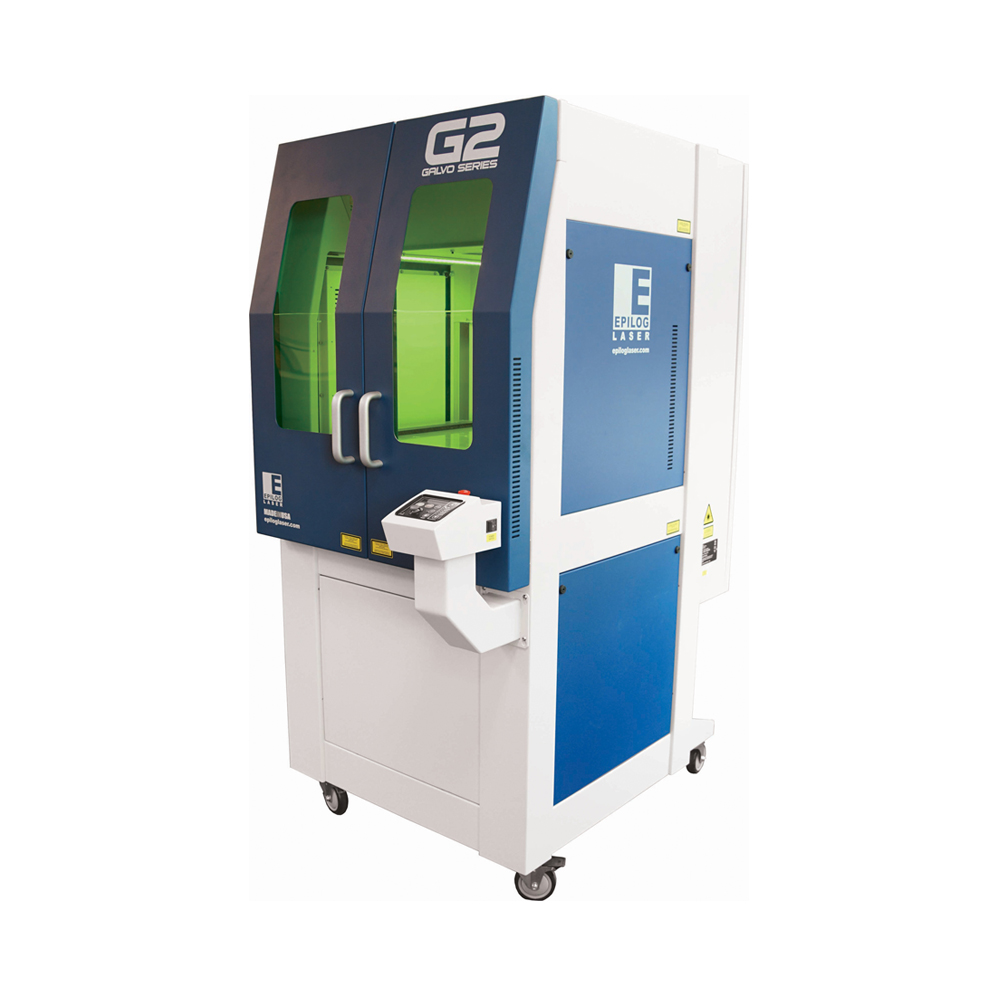

Epilog G2 Galvo Laser Series

  • Highest-Speed Engraving Over Largest Work Area
  • Adjustable Engraving Area
  • Use the Software of Your Choice
  • Telescoping Dynamic Focus Lens
  • Engineered and Manufactured in the USA
  • Change Your Work Area without Changing Lenses
  • Louvered Ventilation for Less Maintenance
  • Fit Your Largest Parts on the Table
  • Incredibly Fast 2m/sec Marking Speeds
  • Easily Change Between Deep and Surface Etching
  • Repositionable Guides for Corner Placement
  • Non-Contact Marking: No Bits to Replace
  • Mark and Etch a Wide Variety of Materials
  • Visible Red Dot Laser Tracing Feature
  • Create Multiple Styles of Marks
  • Network Your Laser Across Your Business
  • Raster/Vector Color Mapping

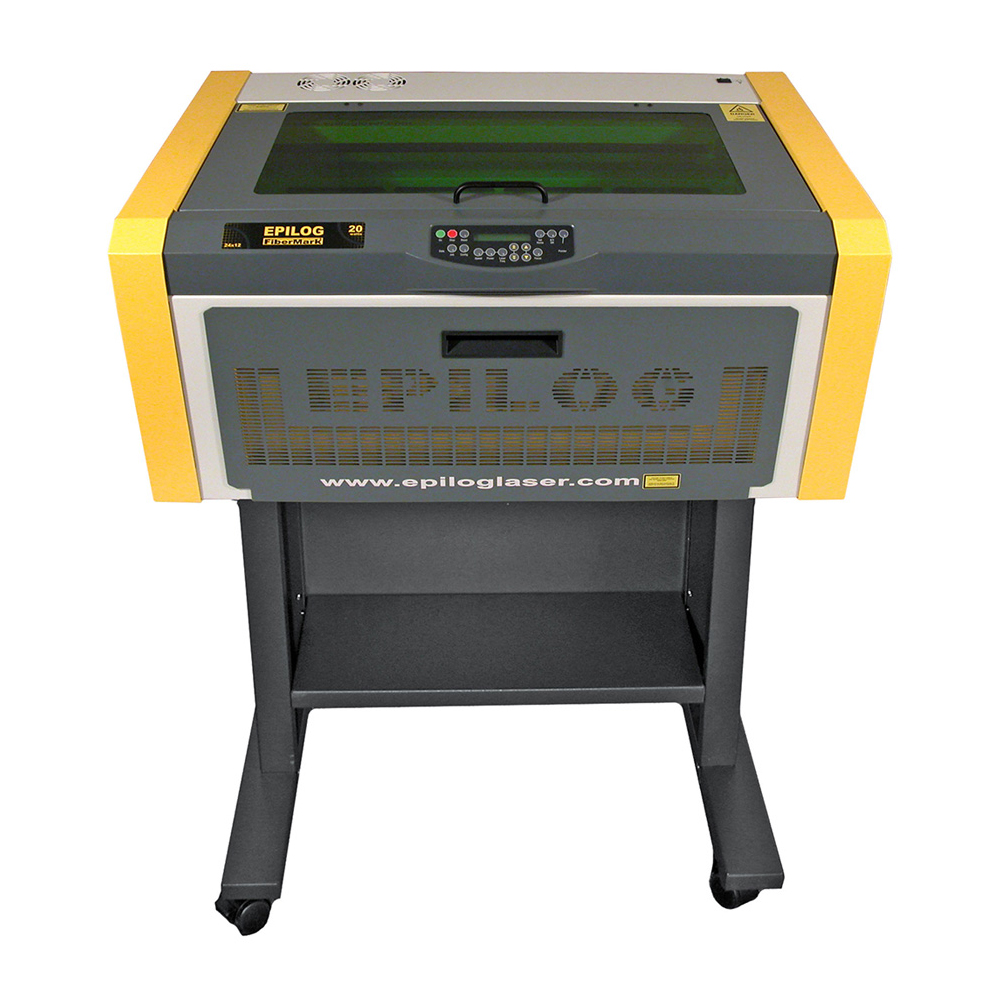

Epilog Fiber Laser Series
